    Queensland Rail has operated 18 different classes totalling up to 532 locomotives.
    I have not included locomotives form after the takeover of Clyde

    [​IMG]
    1400
    Total Produced: 13
    Years Built: 1955 - 1957
    Prime mover: EMD 12-567C
    max speed: 50 mph (80 kph)
    Power Output: 1,310 hp (977 kW)

    [​IMG]
    1450
    Total Produced: 10
    Years Built: 1957 - 1958
    Prime mover: EMD 12-567C
    max speed: 50 mph (80 kph)
    Power Output: 1,310 hp (977 kW)

    [​IMG]
    1460
    Total Produced: 42
    Years Built: 1946 - 1966
    Prime mover: EMD 12-567C
    max speed: 70 mph (112 kph)
    Power Output: 1,310 hp (977 kW)

    [​IMG]
    1502
    Total Produced: 29
    Years Built: 1967 - 1969
    Prime mover: EMD 12-645E
    max speed: 70 mph (112 kph)
    Power Output: 1501 hp (1119 kW)

    [​IMG]
    1550
    Total Produced: 27
    Years Built: 1972 - 1976
    Prime mover: EMD 12-645E
    max speed:
    Power Output: 1501 hp (1119 kW)

    [​IMG]
    1700
    Total Produced: 12
    Years Built: 1963
    Prime mover: EMD 8-567C
    max speed: 50 mph (80 kph)
    Power Output: 874 hp (652 kW)

    [​IMG]
    1720
    Total Produced: 56
    Years Built: 1966 - 1970
    Prime mover: EMD 8-645E
    max speed: 62 mph (100 kph)
    Power Output: 999 hp (745 kW)

    [​IMG]
    2100
    Total Produced: 24
    Years Built: 1970 - 1973
    Prime mover: EMD 16-645E
    max speed: 50 mph (80 kph)
    Power Output: 1999 hp (1491 kW)

    [​IMG]
    2130
    Total Produced: 11
    Years Built: 1974 - 1975
    Prime mover: EMD 16-645E
    max speed: 50 mph (80 kph)
    Power Output: 1999 hp (1491 kW)

    [​IMG]
    2141
    Total Produced: 8
    Years Built: 1973
    Prime mover: EMD 16-645E
    max speed: 50 mph (80 kph)
    Power Output: 1999 hp (1491 kW)

    [​IMG]
    2150
    Total Produced: 14
    Years Built: 1978 - 1979
    Prime mover: EMD 16-645E
    max speed: 50 mph (80 kph)
    Power Output: 1999 hp (1491 kW)

    [​IMG]
    2170
    Total Produced: 45
    Years Built: 1982 - 1984
    Prime mover: EMD 16-645E
    max speed: 62 mph (100 kph)
    Power Output: 2001 hp (1492kW)

    [​IMG]
    2400
    Total Produced: 24
    Years Built: 1977 - 1978
    Prime mover: EMD 12-645E
    max speed:
    Power Output: 1501 ph (1119 kW)

    [​IMG]
    2450
    Total Produced: 17
    Years Built: 1979 - 1980
    Prime mover: EMD 12-645E
    max speed:
    Power Output: 1501 hp (1119 kW)

    [​IMG]
    2470
    Total Produced: 38
    Years Built: 1980 - 1983
    Prime mover: EMD 12-645E
    max speed:
    Power Output: 1501 hp (1119 kW)

    [​IMG]

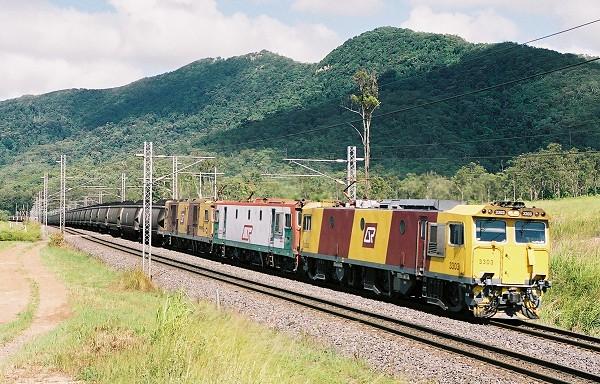

    3300/3400
    Total Produced: 22
    Years Built: 1994 - 1995
    Prime mover: 25kv overhead
    max speed: 50 mph (80 kph)
    Power Output: 3980 hp (2970 kW)

    [​IMG]
    3500/3600 (in partnership with walkers ltd)
    Total Produced: 50
    Years Built: 1986 - 1988
    Prime mover: 25kv overhead
    max speed: 50 mph (80 kph)
    Power Output: 3880 hp (2890 kW)

    [​IMG]
    3900 (in partnership with walkers ltd)
    Total Produced: 30
    Years Built: 1988 - 1990
    Prime mover: 25kv overhead
    max speed: 62 mph (100 kph)
    Power Output: 3880 hp (2890 kW)
