Clean Imaging W/ High Fps

Discussion in 'PC Discussion' started by Amtrak131, Sep 12, 2020.

  1. Amtrak131

    Amtrak131 Active Member

    Joined:
    Sep 20, 2017
    Messages:
    73
    Likes Received:
    103
    So I played around with some settings in the game, and my hardware and I was able to retain a clear and sharp image no matter how much I bump down the screen percentage and get constant 30-40fps in dense areas of the map. So I'm going to share some of my information for someone that wants the same thing.

    Acer Helios Predator 300
    i7-9750H CPU@ 2.60GHZ 2.59GHZ
    GeForce GTX 1660 Ti 6GB
    RAM 16GB Refresh rate 144Hz
    1980x1080p

    Engine ini:

    [SystemSettings]
    r.ViewDistanceScale=7
    r.StaticMeshLODDistanceScale=0
    foliage.LODDistanceScale=4
    r.MipMapLODBias=-3
    r.TextureStreaming=0
    r.MaterialQualityLevel=0
    r.TemporalAASharpness=1.0
    r.SSR.Quality=2
    r.Color.Mid=0.4
    r.MotionBlurQuality=0
    r.SceneColorFringe.Max=0
    r.SceneColorFringeQuality=0
    r.Tonemapper.Quality=0
    r.AmbientOcclusionLevels=4
    r.DepthOfFieldQuality=0
    r.TemporalAASamples=64
    r.Tonemapper.Sharpen=1

    Nvidia Control Panel:

    Anisotropic Filtering: 16x
    Gamma Correction: On
    Antialiasing Mode: Enhance 3D Application
    Antialiasing Setting: 2x
    Antialiasing Transpency: off
    Low Latency Mode: off
    Multi-Frame Sampled(MAA): off
    Power management Mode: Prefer Maximum Performance
    Texture Filtering- Quality: High Quality
    Threaded Optimization: off
    Vertical Sync: On
    WhisperMode: Max Performance

    Game Settings:

    TAA Antialiasing
    All graphic settings MAXED
    Screen Percentage: 150%
    Vertical Sync: On

    here is an article that helped me get my settings to where i wanted them to be:

    https://www.wotawallysbits.co.uk/Setting Up TSW with a single nVidia card.pdf


    Hopefully this helps someone!!!

    Last edited: Sep 23, 2020
    • Like Like x 6
    • Helpful Helpful x 1
  2. stinkyheadsman

    stinkyheadsman Member

    Joined:
    Aug 4, 2020
    Messages:
    59
    Likes Received:
    54
    oo thanks much

  3. rat7_mobile

    rat7_mobile Active Member

    Joined:
    Feb 1, 2020
    Messages:
    277
    Likes Received:
    63
    What is the Video card model and what is the resolution the screen is running at, this what would make the biggest difference in the performance

  4. Amtrak131

    Amtrak131 Active Member

    Joined:
    Sep 20, 2017
    Messages:
    73
    Likes Received:
    103
    1980x1080p and my video card model is Geforce GTX 1660Ti

  5. Amtrak131

    Amtrak131 Active Member

    Joined:
    Sep 20, 2017
    Messages:
    73
    Likes Received:
    103
    So I may some more additions to the Engine ini to further sharpen the scene images, reduce impact performance and help with quality. These are the addons I made:

    r.AmbientOcclusionLevels=4
    r.DepthOfFieldQuality=0
    r.TemporalAASamples=64
    r.Tonemapper.Sharpen=1

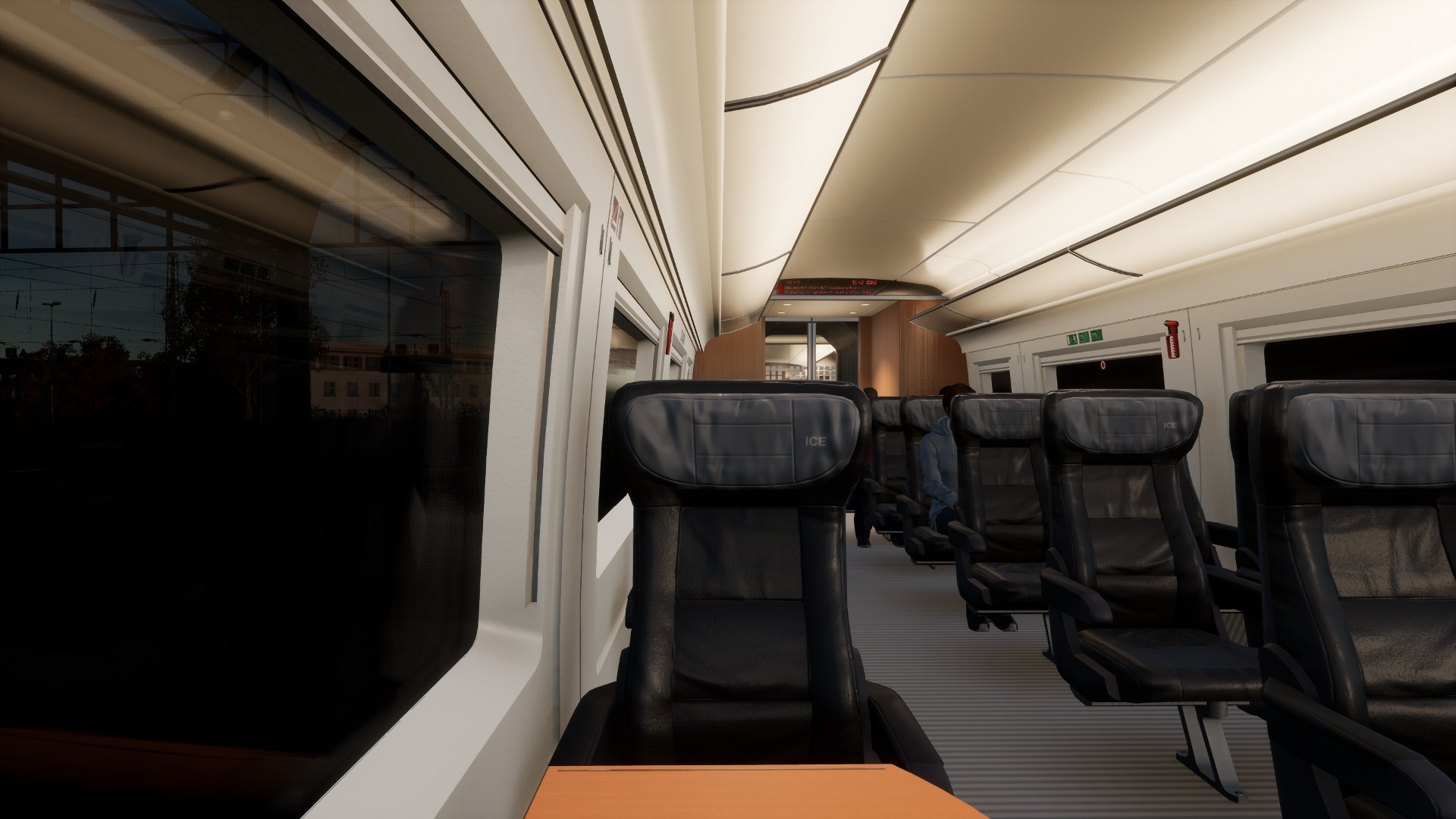

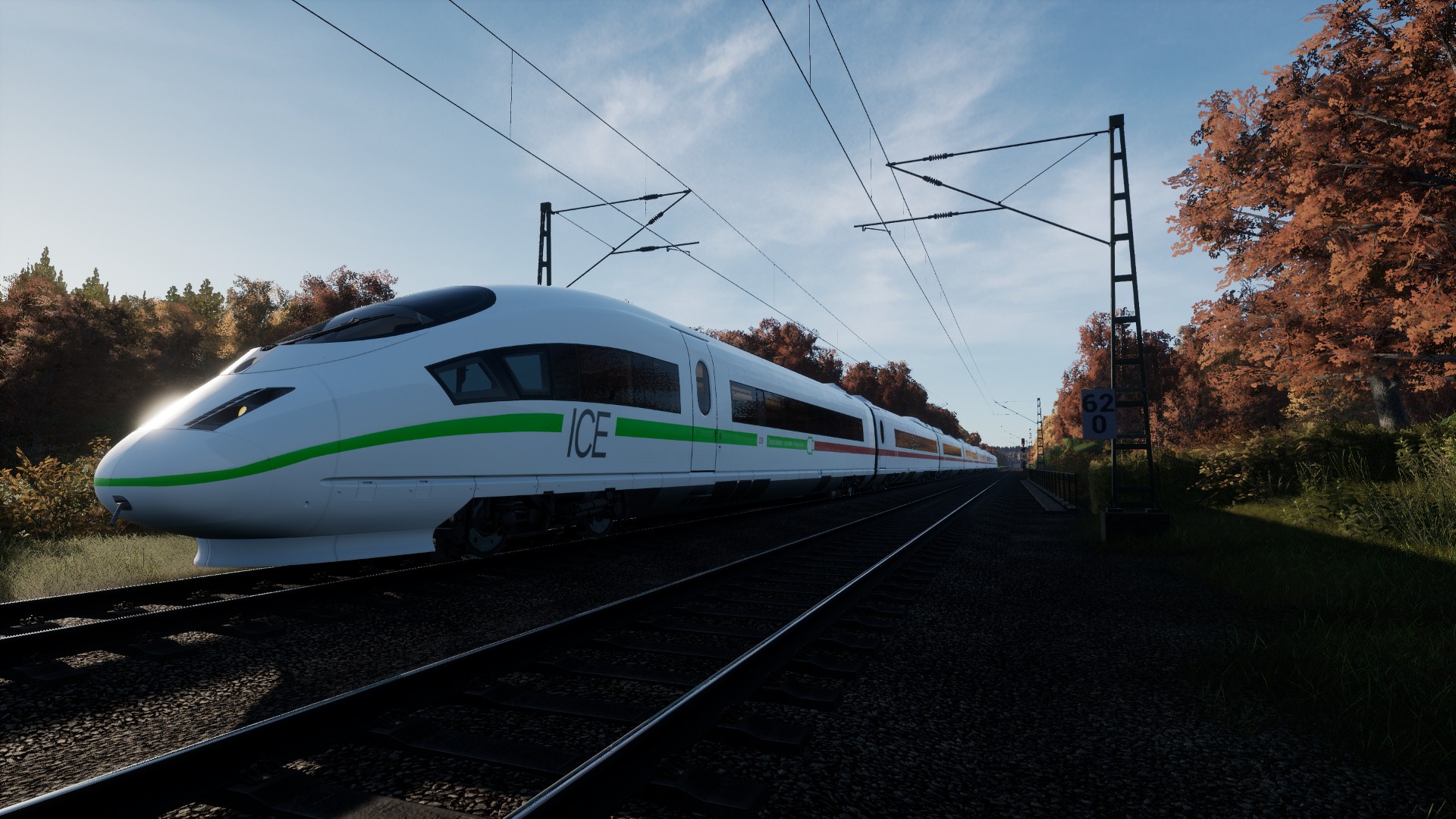

    [​IMG]
    [​IMG]

    Last edited: Sep 13, 2020
    • Like Like x 1
  6. breblimator

    breblimator Well-Known Member

    Joined:
    May 1, 2019
    Messages:
    1,162
    Likes Received:
    866
    Editing engine.ini doesn't work for me. I tested it on distant hills where trees appeared during the approach.

    [SystemSettings]
    r.ViewDistanceScale = 20

    I increased the default value 20 times without any effect. I've used it in previous releases of the game and it seemed to work. Not now.

    EDIT

    I also used a few of your settings presented above - I took screenshots before and after - in my opinion they are the same. But maybe it's only for me :D FPS without any changes.

    I can believe in burying the NVIDIA settings!

    Last edited: Sep 13, 2020
  7. Oystein

    Oystein Member

    Joined:
    May 24, 2018
    Messages:
    22
    Likes Received:
    31
    r.Color.Mid=0.4 will reduce brightness, which is not the best solution to fix TSWs dark shadows in daylight. 0.5 is the "normal" value, anything below will reduce the brightness.

  8. Amtrak131

    Amtrak131 Active Member

    Joined:
    Sep 20, 2017
    Messages:
    73
    Likes Received:
    103
    You are looking at distance scene with Draw distance, I don't really pay attention so much with scenery other than the r.TextureStreaming=0, foliage.LODDistanceScale=4 those are the main settings for that. As far as r.Color.Mid=0.4 goes, default tends to wash out alot of colors with bloom at full effect. So toning it down it help with getting colors back.

    Nvidia Control settings work in certain situations as long as your expectations match what the controls can do, but you have to test this out alot and do some research on what ue4 controls do.

  9. londonmidland

    londonmidland Well-Known Member

    Joined:
    Nov 8, 2017
    Messages:
    1,207
    Likes Received:
    3,994
    This helps tone down the ridiculous amount of bloom and washed out colours TSW has on most routes by default.

  10. breblimator

    breblimator Well-Known Member

    Joined:
    May 1, 2019
    Messages:
    1,162
    Likes Received:
    866
    I made some screenshots with Amtrak131' settings. Tried different routes. They all looks exactly the same as default. You guys really see some changes?

  11. Amtrak131

    Amtrak131 Active Member

    Joined:
    Sep 20, 2017
    Messages:
    73
    Likes Received:
    103
    I definitely see changes in the texture quality. Especially TAA. Which now goes from smooth to smooth and sharper. Which helps when you want to bump down the screen percentage, but take a picture on a object and run a test on them and play around with the settings for your pc. These are the settings i used based on my pc. It may affect everyone differently.

    • Like Like x 1
  12. Amtrak131

    Amtrak131 Active Member

    Joined:
    Sep 20, 2017
    Messages:
    73
    Likes Received:
    103
    Made a change and further increased in image sharpness with:

    Antialiasing Setting: 8x

    rather than 2x

  13. sinnere

    sinnere Member

    Joined:
    Mar 9, 2019
    Messages:
    47
    Likes Received:
    48
    Where do I go to access this file?

  14. fanta1682002

    fanta1682002 Active Member

    Joined:
    Dec 22, 2019
    Messages:
    553
    Likes Received:
    249
    i Antialiasing Setting: 16x nvida 1080TI SLI

  15. sinnere

    sinnere Member

    Joined:
    Mar 9, 2019
    Messages:
    47
    Likes Received:
    48
    Alright this thread should be pinned. I was able to tweak the engine file and Nvidia Control Panel to his recommended settings and I'm now getting 70+ fps in the high speed ICE train in heavy rain! Compared to the 20-30 fps and constant stuttering I was getting beforehand.

    Much thanks!

  16. Amtrak131

    Amtrak131 Active Member

    Joined:
    Sep 20, 2017
    Messages:
    73
    Likes Received:
    103
    You are more than wlecome!!!

  17. Amtrak131

    Amtrak131 Active Member

    Joined:
    Sep 20, 2017
    Messages:
    73
    Likes Received:
    103
    New update:

    those of you who like me use Nvidia graphics cards should visit the nvidia control panel and change the “WhisperMode” to max performance which for me is 120fps

    also i was doing some research on the possibility of unlocking the refresh rate which for my laptop is 144hz that is normally locked in games to 60hz.

    add the following to to the engine ini:

    r.TMaxSmoothedFramerate=144

    this is dependent on your monitors max refresh rate. Mine is 144hz

    And add to gameusersettings file:

    bSmoothFrameRate=True
    MinSmoothedFramerate=0
    MaxSmoothedFramerate=144.0000

    you can change these numbers and try out. Let me know of your results

  18. Amtrak131

    Amtrak131 Active Member

    Joined:
    Sep 20, 2017
    Messages:
    73
    Likes Received:
    103
    Update:

    New Image Quality Improvement:

    Nvidia Control Panel:

    Image Sharpening: Enable

    Sharpen: 0.50
    Ignore Film Grain: 0.17

    • Like Like x 1
