Msb Linespeed

Discussion in 'General Discussion' started by Dave Mel, Mar 14, 2019.

  1. Dave Mel

    Dave Mel Active Member

    Joined:
    Aug 9, 2018
    Messages:
    257
    Likes Received:
    128
    is there a linespeed limit for freight trains on this route. i keep looking for signs but dont see any. Maybe i should go to specsavers lol. is there a linespeed limit for passenger trains as well

  2. xD 2Bad4You

    xD 2Bad4You Well-Known Member

    Joined:
    Mar 10, 2018
    Messages:
    553
    Likes Received:
    357
    There are several linespeed changes across the route. Look for these signs:

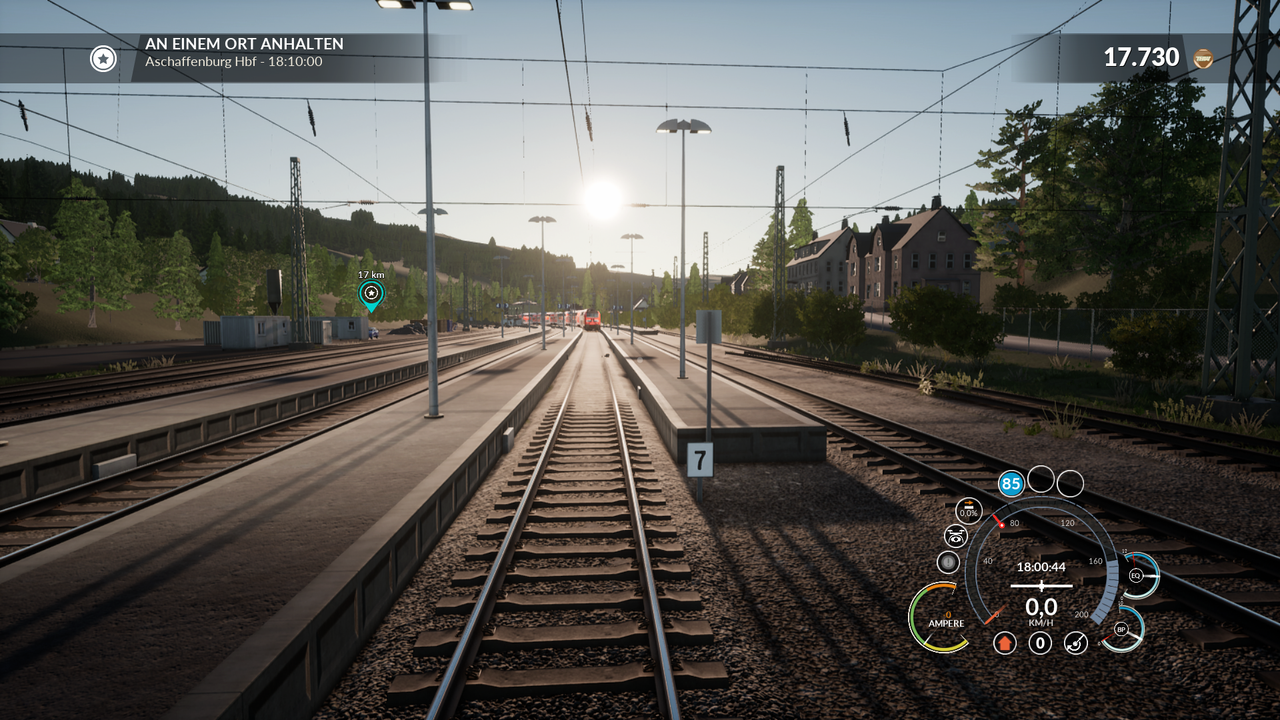

    [​IMG]

    or those:

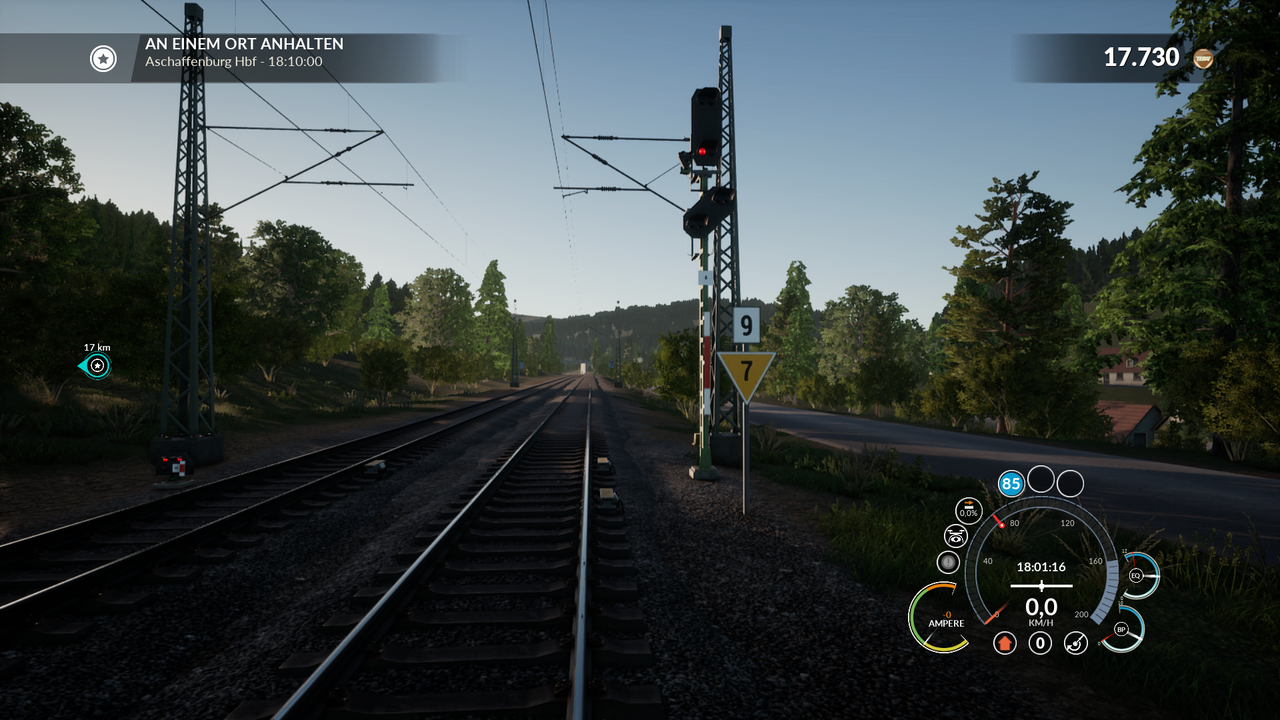

    [​IMG]

    The upper one means that the Speedlimit for this section is the number multiplied with 10. In that case 70kp/h.
    The lower one means that the Speedlimit is 90 kp/h and the 7 with the triangle down means that there is a Speedlimit of 70 kp/h coming.

    The yellow triangle oneĀ“s can also appear the other way around, with the edge of the triangle pointing upwards. That means that a Speedchange to a higher Speedlimit is coming up.

    The yellow signs pointing downwards and showing a Speed under 100kp/h need to be acknowledged if you are running with PZB.

    With PZB the maxspeed for Passenger trains is:
    PZB O: 165kp/h

    Freight trains and Heavy Freight Train max speed is:
    PZB M: 125kp/h
    PZB U: 105 kp/h

    Of course those maxspeeds only apply for sections where the Linespeed is equal or greater than the PZB maxspeed.

    Last edited: Mar 14, 2019
  3. Dave Mel

    Dave Mel Active Member

    Joined:
    Aug 9, 2018
    Messages:
    257
    Likes Received:
    128
    i dont understand PZB so i usually go on the red line on the hud which to me is the line speed for all trains. i just wanted to know what the max limit was fro the freight trains, like on GWR where it tells you 90/65 to me that mean 90mph for passengers dmus 65 for freight. Thanks for your info, i understand the numbers now. now i have to find a PZB vid lol

  4. Digital Draftsman

    Digital Draftsman Well-Known Member

    Joined:
    Mar 24, 2018
    Messages:
    468
    Likes Received:
    1,466
    It's worth keeping in mind that each train will have its own top speed dictated by the vehicles in it. For example, a Class 166 has a top permitted speed of 90mph, so even if the limit is 100mph, you can still only go 90mph. A Class 66 has top permitted speed of 75mph, but when loaded, the HKA hopper only has a top permitted speed of 60mph (75mph when empty), so a train of loaded HKAs hauled by a Class 66 can only do 60mph, even if the speed limit 75mph for freight.

    I don't know why DTG don't explain this, but it's pretty important infomation to know on the real railway.

    • Upvote Upvote x 2
  5. xD 2Bad4You

    xD 2Bad4You Well-Known Member

    Joined:
    Mar 10, 2018
    Messages:
    553
    Likes Received:
    357
    The following is out of the manual of TSW:MSB, so it might be worth mentioning here aswell:

  6. Dave Mel

    Dave Mel Active Member

    Joined:
    Aug 9, 2018
    Messages:
    257
    Likes Received:
    128
    i quite agree with you digital draftsman. i think DTG should tell us when we are selecting a loco to use. all it tells us is the horsepower, traction. i think it should tell us the top speed in mph and kp/h. i dont understand kph but my hud tells me in mph. i also agree they should tell us the weight of the whole train as well. when i was a shunter many years ago i was given instructions to make trains up. i.e. how many wagons to put on, or by weight of the whole train including the locos or loco. then i would sign a sheet and give it to the driver of the train who was taking it wherever on the mainline. So when i became a freight train driver i was given a sheet of the whole train with the weight and route instructions. i.e. speed limits, speed reductions where Pway where working on the route. all sorts of information.

    • Upvote Upvote x 1
  7. SamYeager270

    SamYeager270 Well-Known Member

    Joined:
    Dec 8, 2016
    Messages:
    404
    Likes Received:
    340
